Pressure washer fittings look similar, but small differences in size and thread decide whether a connection seals or sprays water at your feet. If you have shopped for a replacement hose, a new gun or an adapter set, you have probably seen terms like M22, 14mm, 15mm and 3/8 inch quick connect. This guide explains what they mean, how the parts fit together, and how to check compatibility before you buy.
The Connection Points on a Pressure Washer
A typical setup has four places where parts join:
- Water inlet: where a standard garden hose feeds the pump.
- Pump outlet: where the high pressure hose attaches to the machine.
- Hose to gun: the other end of the high pressure hose attaches to the spray gun or wand.
- Wand to nozzle: the tip that sets the spray pattern.
Quick connect fittings make the first three faster to join and separate. Instead of threading and wrenching, you push in and click. They also make it simple to swap in a longer hose or a different accessory.
What M22 Means

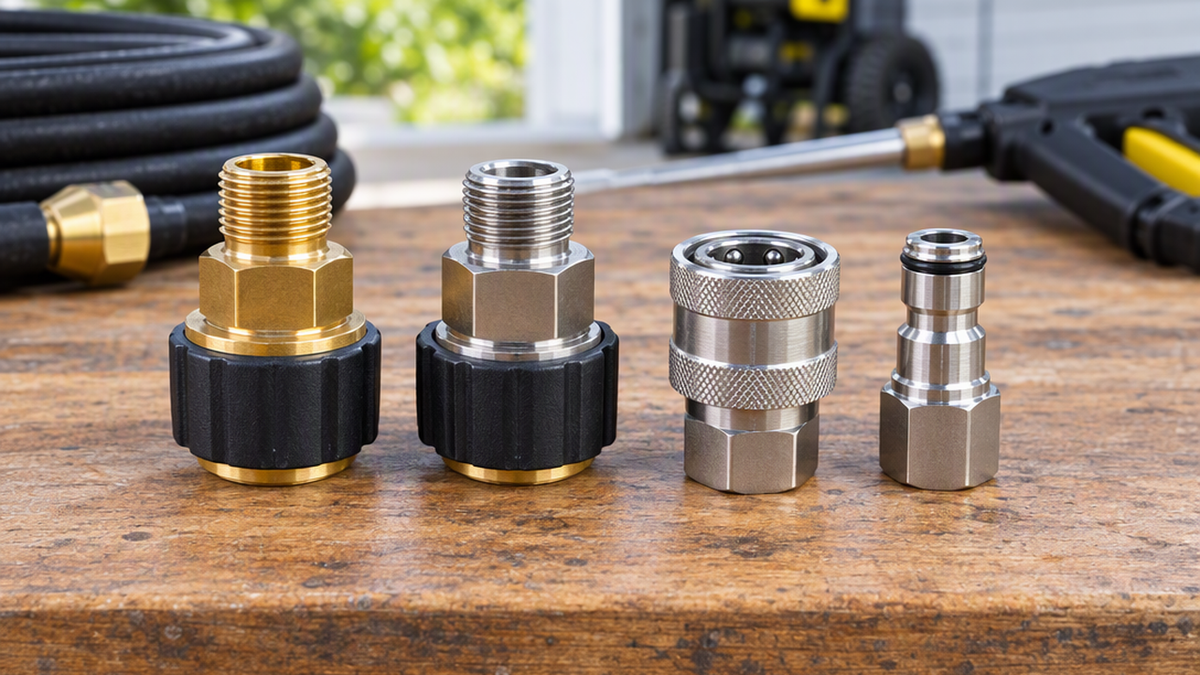

M22 is a metric thread, 22 millimeters in diameter, widely used on pressure washer outlets and guns. The tricky part is the inner fitting size. Many M22 connections use either a 14mm or a 15mm inner diameter. They look nearly identical, but a mismatch can leak.
The Pressure Washer Adapter Set with M22 swivel to 3/8 inch quick connect is a good example of why this matters. Its listing states that the M22-14 swivel features a 14mm fitting with an inside diameter of 14mm, not 15mm, and that if your fitting is 15mm it may leak and may not be compatible with some electric pressure washers that have an M22 15mm fitting. Check your machine's manual or the markings on the existing fitting before ordering.
Understanding 3/8 Inch Quick Connect
3/8 inch refers to the size of the quick connect coupler, a female socket and a male plug. It is a very common standard on pressure washer hoses and accessories. A hose with a 3/8 inch female quick connect socket pairs with a matching 3/8 inch plug on the machine or gun side.
The 25ft Pressure Washer Hose with 3/8 inch quick connect uses this standard. According to its listing, it is a steel-wire braided rubber hose with a max working pressure of 4000 PSI, a max temperature of 176 F, and a flow rate range of 2.5 to 5 GPM. It includes a 3/8 inch quick connect female socket and a 3/8 inch stainless steel plug. The listing also gives an important warning: it is a pressure washer hose, not a garden hose, and is only suitable for pressure washer use.
What Is in a Typical Adapter Kit
The adapter set mentioned above includes four pairs of fittings. According to the listing:
- 2 pack M22 14mm quick connect swivel plus 3/8 inch quick connect fittings.
- 2 pack 3/8 inch QD plus M22-14 male.
- 2 pack 3/4 inch female plus 1/2 inch quick connect.
- 2 pack 1/2 inch plug plus 3/4 inch male.
The listing explains that two sets connect the pump outlet to the pressure washer hose, or the hose to the gun, while the other two convert 3/4 inch threads into quick release connectors so standard 3/4 inch garden hoses connect to the inlet of an electric washer pump. It is made of corrosion resistant brass, with a working pressure up to 5,000 PSI.
How to Check Compatibility Before You Buy
- Identify your thread. Look at the pump outlet and gun. Is it M22, or another thread such as 1/4 inch or 3/8 inch NPT?
- Measure the inner size. If it is M22, find out whether it is 14mm or 15mm. Your manual may state it. If not, a caliper or the fitting's markings can confirm.
- Check the quick connect size. 1/4 inch and 3/8 inch connectors are not interchangeable. Match the hose and accessory ends.
- Check pressure ratings. Make sure the hose and fittings are rated at or above your machine's maximum PSI.
- Inspect the O-rings. Sealing depends on them. Replace flat or cracked ones.
Installing Quick Connect Fittings
- Turn off the machine, shut off the water and squeeze the trigger to release pressure.
- Unscrew the old fitting from the pump outlet or gun.
- Wrap the male threads with plumber's tape if the fitting calls for it, and check any O-ring is seated.
- Thread the new adapter on by hand, then snug it with a wrench. Do not over-tighten.
- Pull back the collar on the female socket, push the plug in until it clicks, then release the collar.
- Turn the water on, squeeze the trigger to purge air, then start the machine and check for leaks.
Fixing Leaks
If a connection leaks, the cause is usually a worn O-ring, a mismatched size or a fitting that is not fully seated. Our guide to fixing a leaking pressure washer quick connect walks through replacing O-rings. If pressure feels weak overall, see how to diagnose a pressure washer losing pressure.
Do Not Forget the Garden Hose Side
The water supply matters too. A kinked or leaking supply hose reduces flow to the pump. Quality hose fittings help keep the inlet connection tight. Our garden watering and hose fittings collection has connectors that suit standard 3/4 inch hose threads.
Find the Right Fittings
With the right adapter, swapping hoses or guns takes seconds. Ready to match your setup? Browse our full range of pressure washer parts and accessories, or check the best sellers for popular picks.
